pondmaster surface and shoreline herbicide Airmax Aeration System Remote Manifold Kits

pondmaster surface and shoreline herbicide Airmax Aeration System Remote Manifold KitsAirmax Aeration System can be installed several hundred feet away from the ponds shoreline, and the Remote Manifold Kit can be used to simplify airflow controls to diffusers. Normally, diffuser airflow adjustments can be made on the compressor manifold; however, when the system is located far away from the diffusers it can be difficult to observe these adjustments on the surface of the pond. The Airmax Remote Manifold Kit allows you to remotely adjust

Airmax® Aeration System can be installed several hundred feet away from the pond’s shoreline, and the Remote Manifold Kit can be used to simplify airflow controls to diffusers. Normally, diffuser airflow adjustments can be made on the compressor manifold; however, when the system is located far away from the diffusers it can be difficult to observe these adjustments on the surface of the pond.

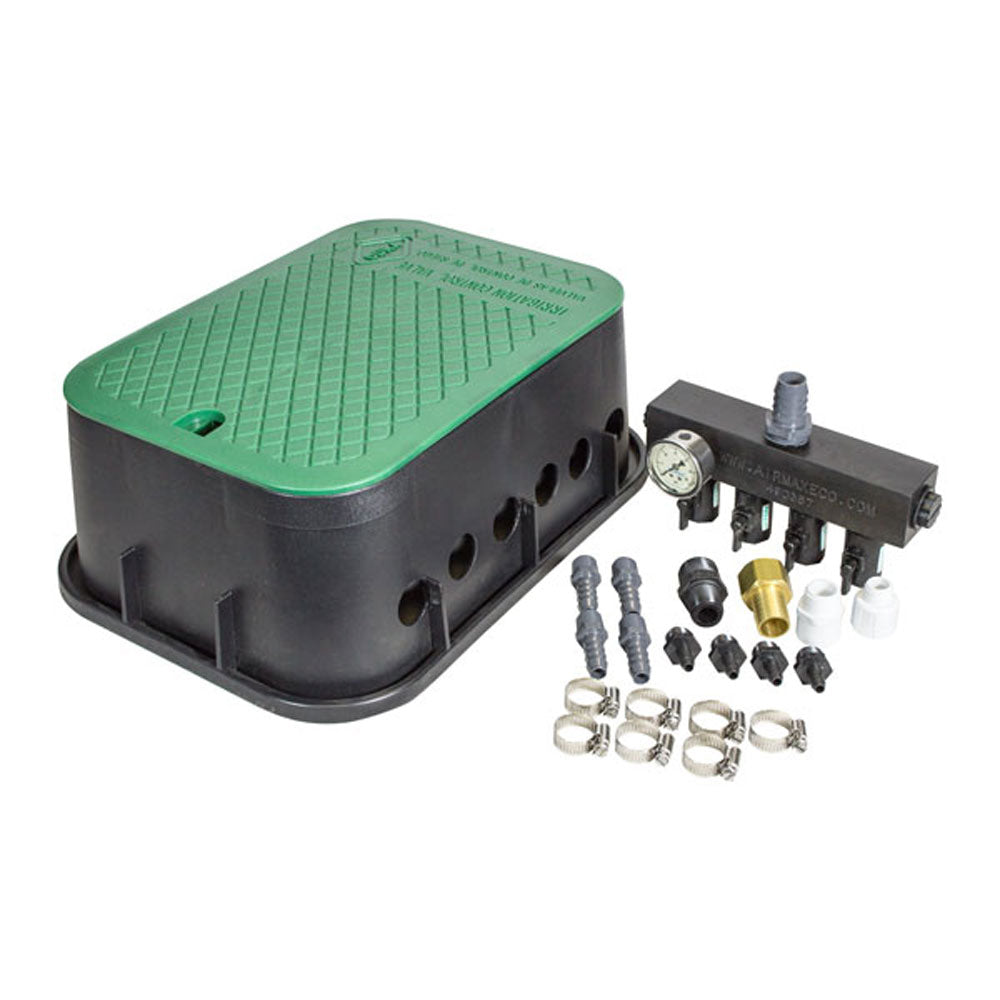

The Airmax® Remote Manifold Kit allows you to remotely adjust the airflow from the pond’s shore instead of at the compressor. This easy-to-install remote manifold kit includes valve box, manifold and additional adapters and fittings to connect to either 1” poly or 1” PVC pipe.

The Junction Valve Box allows for easy access to airline connections underneath the Composite Cabinet. A Junction Valve Box is available with or without pre-drilled holes. The dimensions of the junction box are 17"L x 12"W x 6"H.

SKU	UPC Code	Description
600194	813166022935	4-Port Remote Manifold Kit for SW40/SW40HP, PS40
490369	813166022973	Junction Valve Box with Lid
490308	813166022980	Pre-Drilled Junction Valve Box with Lid
