third man pedals CopperSound Pedals + Third Man Hardware Triplegraph – eastside music supplyA new, state of the art digital octave pedal The Triplegraph is a digital octave pedal designed by CopperSound Pedals and Jack White, featuring three proprietary telegraph keys and an integrated auxiliary loop. Utilizing a high power DSP Blackfin Processor, Triplegraph triggers an octave down with the left key, octave up with the right key, while the middle key activates a killswitch or auxiliary loop. In KILL mode, the middle key acts as a momentary

 A new, state of the art digital octave pedal

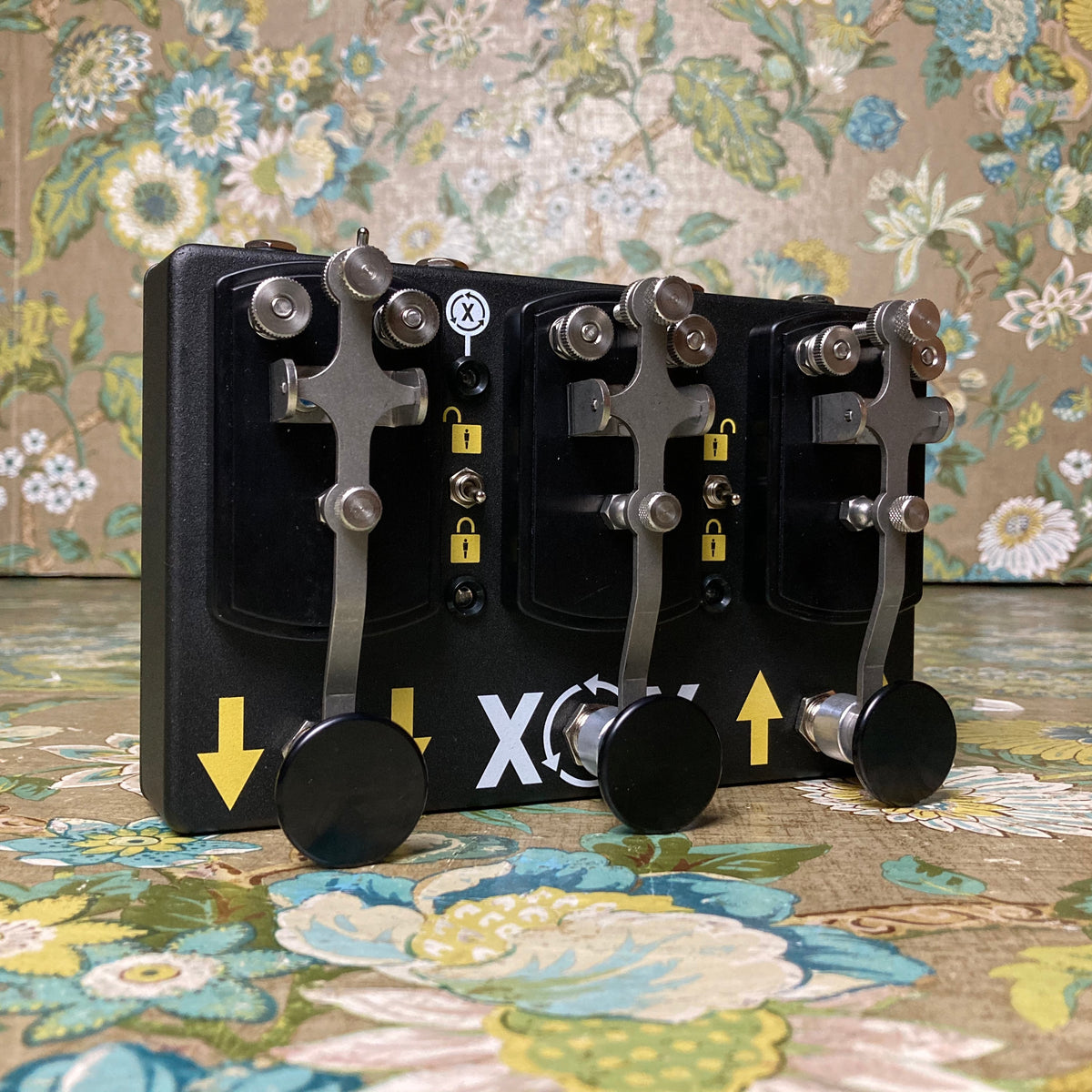

The Triplegraph is a digital octave pedal designed by CopperSound Pedals and Jack White, featuring three proprietary telegraph keys and an integrated auxiliary loop. Utilizing a high-power DSP Blackfin Processor, Triplegraph triggers an octave down with the left key, octave up with the right key, while the middle key activates a killswitch or auxiliary loop. In KILL mode, the middle key acts as a momentary killswitch, allowing the player to remove their dry signal and attain a fully wet octave up and/or down when used in conjunction with the octave keys. In AUXILIARY mode, the player can connect one or more of their favorite effects in parallel with the octaves via the send/return jacks, and trigger them in momentary bursts. The high and low octaves can be triggered in parallel with the dry signal when the octave keys are pressed independently. The octaves themselves track seamlessly with zero latency, and can be triggered in latching or momentary modes, using our “Loctave” toggle switches. The telegraph keys themselves are composed of custom stainless steel and aluminum components, making them indestructible and exceedingly durable for both hand and foot operation. Over four years in the making, the collaborative result is an innovative, state of the art clean-tracking octave pedal, capable of standing its own against industry standards.

Tech Specs:

Power Consumption:

Standard 9V (2.1mm x 5.5mm) center negative power supply. Triplegraph requires at least 250mA of available current and has internal polarity protection. If power is lost, Triplegraph will automatically revert to bypass, allowing unaffected audio to still pass through. Please not underpower this device.

In/Out & Send/Return Jacks:

Standard 1/4-inch Instrument Cables

This item is currently limited to (1) unit per customer.
