Description
esr gear coupon Fnirsi Lcr-St2 Standart 100K Lcr Esr Meter 2-In-1 Digital Tweezers BridgeThe FNIRSI LCR ST2 is a compact dual mode LCR meter that supports both tweezer and Kelvin clip testing, ideal for components of any size. It measures R C L, diodes, and up to 30V with five test frequencies and a 1. 47" HD display. Features include full band sweep (100Hz100kHz), intelligent sorting, dual mode comparison, magnetic attachment, and a 300mAh batteryperfect for fast, precise testing in any environment. Features: Wide Range Component
The FNIRSI LCR-ST2 is a compact dual-mode LCR meter that supports both tweezer and Kelvin-clip testing, ideal for components of any size. It measures R/C/L, diodes, and up to 30V with five test frequencies and a 1.47" HD display. Features include full-band sweep (100Hz–100kHz), intelligent sorting, dual-mode comparison, magnetic attachment, and a 300mAh battery—perfect for fast, precise testing in any environment.
Features:
-
Wide Range Component Measurement
Accurately measures resistance (10 mΩ–10 MΩ), capacitance (1 pF–22 mF), inductance (1 μH–10 H), diode (≤0.7 V), and voltage (±30 V). -
Comprehensive Electrical Parameters
Provides D/Q/Z/X/θ/ESR readings to fully characterize component behavior and performance. -
Five Selectable Test Frequencies
Offers professional testing at 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz for different types of components and applications. -

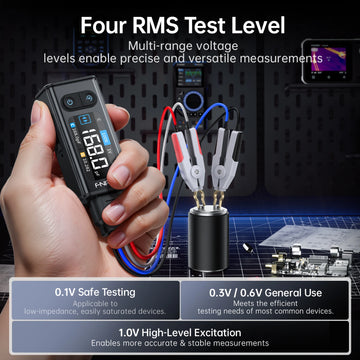

Four RMS Test Levels
Adjustable excitation levels (0.1V / 0.3V / 0.6V / 1.0V) enable optimized measurement stability across various component types. -
Dual Series/Parallel Equivalent Comparison
Simultaneously displays series and parallel equivalent values to minimize parasitic interference and enhance measurement accuracy. -
Full-Band Sweep Mode (100Hz–100kHz)
Provides fast multi-frequency analysis with a single action, enabling detailed characterization of component frequency response. -
Intelligent Sorting with Tolerance Grading
Automatically evaluates components based on preset nominal values and tolerances for rapid OK/NG batch testing. -
Dual-Form Testing: Tweezer Tips + Kelvin Clip
Straight and curved tweezer tips allow easy testing of small components, while the Kelvin clip provides precise four-wire measurement for larger or through-hole components. -
Smart Recognition & Display Functions
Features automatic R/C/L component recognition, dual-parameter display, HOLD/Max/Min, and adjustable system settings. -
Auto-Rotate Orientation
Hand-sensing screen rotation supports both left-handed and right-handed usage for effortless operation. -
Portable Magnetic Design
Includes a magnetic attachment for easy storage and handling, ideal for fast access in field environments. -
1.47" HD Color Display
Offers clear, high-contrast visualization of measurement data for efficient on-site and laboratory usage. -
Long Battery Life & Type-C Charging
Powered by a 300mAh lithium battery with Type-C charging, delivering up to ~3 hours of continuous operation.
Product Parameters
Model Parameters:
Model
LCR-ST2
Standby Time
≈3H
Screen Display
1.47" HD Display
Dimensions
31*170.7*20.3mm
Weight
≈60.8g
Interface
Type-C
Operating Temperature
0℃ ~ 50℃ (Humidity ≤ 75%)
Storage Temperature
-20℃ ~ 60℃ (Humidity ≤ 75%)
Capacitance:
1mF‒22mF
100Hz/20Hz: 5% ± 3 digits
1KHz: 5% ± 3 digits
10KHz: /
100KHz: /
1KHz: 5% ± 3 digits
10KHz: /
100KHz: /
1µF‒1mF
100Hz/20Hz: 2% ± 3 digits
1KHz: 2% ± 3 digits
10KHz: 2% ± 3 digits
100KHz: 5% ± 3 digits
1KHz: 2% ± 3 digits
10KHz: 2% ± 3 digits
100KHz: 5% ± 3 digits
1nF‒1µF
100Hz/20Hz: 2% ± 3 digits
1KHz: 0.5% ± 3 digits
10KHz: 0.5% ± 3 digits
100KHz: 5% ± 3 digits
1KHz: 0.5% ± 3 digits
10KHz: 0.5% ± 3 digits
100KHz: 5% ± 3 digits
1pF‒1nF
100Hz/20Hz: /
1KHz: 2% ± 3 digits
10KHz: 2% ± 3 digits
100KHz: 5% ± 3 digits
1KHz: 2% ± 3 digits
10KHz: 2% ± 3 digits
100KHz: 5% ± 3 digits
Inductance:
1H‒10H
100Hz/20Hz: 5% ± 3 digits
1KHz: 5% ± 3 digits
10KHz: /
100KHz: /
1KHz: 5% ± 3 digits
10KHz: /
100KHz: /
1mH‒1H
100Hz/20Hz: 2% ± 3 digits
1KHz: 2% ± 3 digits
10KHz: /
100KHz: /
1KHz: 2% ± 3 digits
10KHz: /
100KHz: /
10µH‒1mH
100Hz/20Hz: 2% ± 3 digits
1KHz: 0.5% ± 3 digits
10KHz: 0.5% ± 3 digits
100KHz: 5% ± 3 digits
1KHz: 0.5% ± 3 digits
10KHz: 0.5% ± 3 digits
100KHz: 5% ± 3 digits
1µH‒10µH
100Hz/20Hz: /
1KHz: 2% ± 3 digits
10KHz: 2% ± 3 digits
100KHz: 5% ± 3 digits
1KHz: 2% ± 3 digits
10KHz: 2% ± 3 digits
100KHz: 5% ± 3 digits
Resistance:
1MΩ‒10MΩ
100Hz/20Hz: 5% ± 3 digits
1KHz: 5% ± 3 digits
10KHz: /
100KHz: /
1KHz: 5% ± 3 digits
10KHz: /
100KHz: /
1kΩ‒1MΩ
100Hz/20Hz: 1% ± 3 digits
1KHz: 0.5% ± 3 digits
10KHz: 1% ± 3 digits
100KHz: /
1KHz: 0.5% ± 3 digits
10KHz: 1% ± 3 digits
100KHz: /
1Ω‒1kΩ
100Hz/20Hz: 1% ± 3 digits
1KHz: 0.5% ± 3 digits
10KHz: 1% ± 3 digits
100KHz: 5% ± 3 digits
1KHz: 0.5% ± 3 digits
10KHz: 1% ± 3 digits
100KHz: 5% ± 3 digits
10mΩ‒1Ω
100Hz/20Hz: 2% ± 3 digits
1KHz: 2% ± 3 digits
10KHz: 2% ± 3 digits
100KHz: 5% ± 3 digits
1KHz: 2% ± 3 digits
10KHz: 2% ± 3 digits
100KHz: 5% ± 3 digits
Diode & Voltage:
Diode
On-state Voltage ≤ 0.7V
Voltage
±30V
Package List:
Std. Option
◉ LCR-ST2 Tweezer◉ Storage Bag
◉ Curved Tip
◉ Shorting Plate
◉ Data Cable
Plus Option
◉ LCR-ST2 Tweezer◉ Storage Bag
◉ Curved Tip
◉ Shorting Plate
◉ Kelvin Test Clip
◉ Data Cable
