pvs-14 night vision goggles RVM-14 | Gen 3 White Phosphor w/ Up to 3000 FOM

pvs-14 night vision goggles RVM-14 | Gen 3 White Phosphor w/ Up to 3000 FOMRVM 14 Made from aircraft grade aluminum, 15% lighter than a PVS 14. The RVM 14 is a ruggedized night vision monocular designed for operators who require extreme durability in the field. Made from strong aluminum, it's 15% lighter and much tougher than a regular PVS 14. Built from 7075 Aluminum: The housing is machined from aircraft grade aluminum for superior durability compared to plastic PVS 14 housings, ensuring performance in harsh conditions. Up

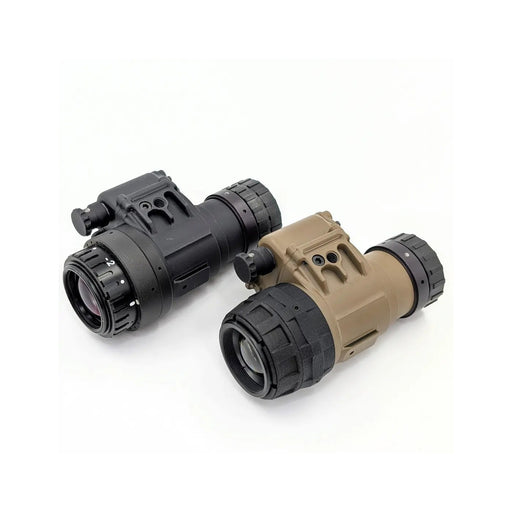

RVM-14 | Made from aircraft-grade aluminum, 15% lighter than a PVS-14.

• The RVM-14 is a ruggedized night vision monocular designed for operators who require extreme durability in the field. Made from strong aluminum, it's 15% lighter and much tougher than a regular PVS-14.
• Built from 7075 Aluminum: The housing is machined from aircraft-grade aluminum for superior durability compared to plastic PVS-14 housings, ensuring performance in harsh conditions.
• Up to 75-Hour Battery Life: Get approximately 75 hours of continuous operation from a single CR123 battery, which is 50% longer than a typical PVS-14.
• Lightweight and Versatile: Weighing only 300g, the RVM-14 is lighter than standard monoculars and can be mounted on a helmet for single-eye use or bridged with another unit for a full binocular setup.
• Waterproof for All Conditions: The RVM-14 is submersible to 66 feet, providing reliable operation in any weather.
• Onboard IR Illuminator: A built-in infrared illuminator allows you to see in zero-light situations, with a protective fence around the button to prevent accidental activation.

RVM 14 Review

What are some common accessories to add to the RVM14?

Headborne Platforms for the RVM-14

• Galvion Caiman Ballistic: A ballistic helmet system providing a stable, protective platform for mounting the RVM-14, ensuring proper eye alignment during dynamic movement.
• Ops-Core FAST SF Gen 2: This helmet features a rigid, lightweight shell with an integrated shroud, offering a secure and stable base for attaching the RVM-14 mount and accessories.
• Team Wendy Exfil SL: A ballistic helmet known for its stable fit and integrated Wilcox shroud, providing a reliable platform for the RVM-14 that minimizes wobble during use.
• HighCom Striker RCHMC: A rifle-rated helmet that offers a robust and secure foundation for the RVM-14 system, designed for high-threat environments where maximum protection and stability are required.

Helmet Mounts for the RVM-14

• Wilcox G24: A precision-machined dovetail-style mount that provides a secure, wobble-free connection between the helmet shroud and the RVM-14 arm, allowing for fine-tuned height and eye-relief adjustments.

System Balancing for the RVM-14

• Ops Core Counterweight: Attaches to the rear of the helmet to offset the forward weight of the mounted RVM-14, improving operator comfort and reducing neck strain during extended use.
• Team Wendy Counterweight: A modular weight system designed to balance the RVM-14, helping to keep the helmet stable and centered on the operator's head for improved comfort and performance.

System Concealment

• Agilite Mitznefet: A helmet cover designed to break up the distinct silhouette of the helmet and the mounted RVM-14, providing enhanced visual concealment for the operator in various environments.

RVM-14 Features and Specifications

The RVM-14 is a ruggedized night vision monocular designed for professionals who require unwavering performance in demanding environments. Its core advantage comes from its housing, which is machined from a solid billet of 7075 aircraft-grade aluminum, making it significantly more durable than standard polymer units. This tough construction, combined with a design that is 15% lighter and has a 50% longer battery life than a typical PVS-14, makes the RVM-14 an essential tool for operators who need a reliable, high-performance night vision system that won't fail during critical missions.

Key Features

• Manual Gain Control: A rotary switch allows the operator to adjust the image intensifier's brightness for optimal clarity in varying light conditions.
• Onboard IR Illuminator: Features a built-in infrared (IR) illuminator for use in zero-light conditions, with a protective fence to prevent accidental activation.
• Bridgeable Configuration: A dovetail integrated into the housing allows two RVM-14 units to be mounted together on a bridge, creating a true binocular system.
• Articulating Helmet Mounting: When used with the RVM-14 Arm or Bridge, the monocular can articulate to lay flat against the helmet when stowed.
• PVS-14 Compatibility: The housing accepts standard mil-spec PVS-14 lenses and accessories, allowing for easy integration with existing equipment.

Specifications

• Housing Material: Billet Machined 7075 Aircraft Grade Aluminum
• Power Source: (1) CR123 Battery
• Operation Time: Approximately 75 hours at room temperature
• Weight: 300g with standard mil-spec optics and battery
• Water Resistance: Submersible to 66 feet
• Magnification: 1x
• Field of View: 40°
• Focus Range: 9.8 inches to infinity
• Diopter Adjustment: -6 to +2
• Available Image Intensifiers and Lenses:
  • This unit is available with a range of high-quality, all-white phosphor image intensifier tubes to meet specific performance and budget needs, including Imported GEN 2+ (1600+ FOM), Elbit (2000-2300+ FOM), and L3 Harris (2300-2750+ FOM).
  • Lens options include standard CAGE Coded lenses, with premium lightweight RPO lenses available through a request for quote.

What's in the box of the AB Night Vision RVM14?

• (1) RVM-14 Monocular Housing
• (1) Pelican-style hard case
• (1) Set of spec sheets for your specific unit


RVM14 FAQs

What makes the RVM-14 different from a standard PVS-14?

The RVM-14 is designed as a more durable and efficient alternative to the PVS-14. Its primary advantages are:

• Tougher Housing: The RVM-14 housing is machined from a solid piece of 7075 aircraft-grade aluminum , making it significantly more rugged than a standard polymer PVS-14 housing.
• Lighter Weight: It weighs 300 grams with standard optics and a battery , making it 15% lighter than a typical PVS-14.
• Longer Battery Life: It provides approximately 75 hours of operation , which is 50% longer than a standard PVS-14.

What kind of battery does the RVM-14 use?

 The RVM-14 operates on one (1) CR123 battery. It features a low battery indicator on the edge of the viewing area to alert the user.

Can the RVM-14 be used as binoculars?

Yes. The housing features an integrated dovetail that allows two RVM-14 monoculars to be connected using the RVM-14 Bridge mount, creating a full binocular system. The bridge is articulating, which allows the units to be folded back against a helmet when in the stowed position.

Is the RVM-14 waterproof?

Yes, the unit is sealed for performance in all weather conditions and is submersible in water up to 66 feet.

What image intensifier tubes and lenses are compatible with the RVM-14?

The AB Night Vision RVM-14 housing is built for broad compatibility with common components.

• It accepts MX-11769 style image intensifier tubes.
• It is compatible with standard PVS-14 eyepieces and objective lenses , including lightweight RPO lenses.

Does the RVM-14 have a built-in IR illuminator?

Yes, it has a built-in IR illuminator for use in situations with no ambient light. The illuminator is activated by a push button that is protected by a fence to prevent it from being turned on by accident. An indicator light will appear in your field of view when the IR illuminator is active.

Where can I purchase the RVM-14?

To ensure you receive a genuine product and expert support, we recommend purchasing from an authorized dealer. The RVM-14 is available through Atomic Defense, an authorized dealer of AB Night Vision. They provide reliable, knowledgeable customer service and top-quality, genuine products.
